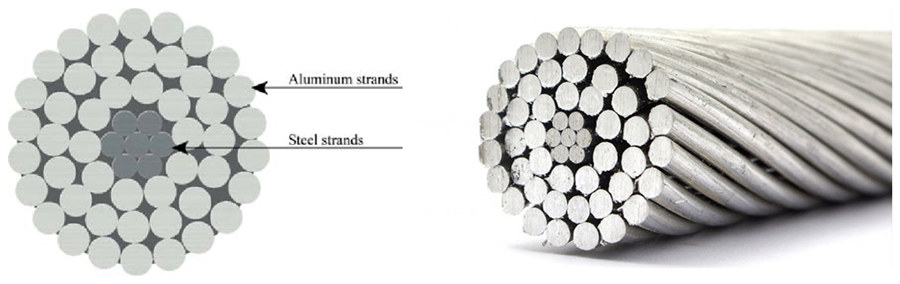

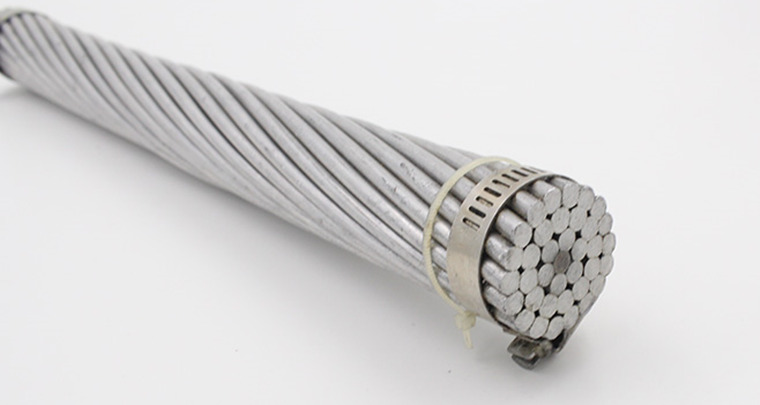

ACSR coyote conductor is one type of aluminum conductor steel reinforced. It belongs to ACSR-BS215 standard. According to the standard principle, the coyote conductor consist of 26 stranded aluminum wire, which the diameter is 2.54 mm. What’s more, acsr coyote bare wire strands 7 steel, and the diameter is 1.91 mm. The acsr coyote conductor (26/2.54+7/1.91) construction is similar to 26/7 drake and hawk conductor. sales@hdcoverheadconductor.com
From the calculation, the overall coyote conductor diameter is 15.89 mm. The total sectional area of this ACSR-BS215 conductor is 152.20 mm2. In fact, this 26/7 aluminum conductor steel reinforced is very common in power engineering project. So if you also need acsr coyote bare wire, just contact us. Huadong Cable Group is a professional coyote conductor manufacturer, we can supply best 26/7 acsr coyote conductor price. Email: sales@hdcoverheadconductor.com
ACSR Coyote Conductor Specification – 26/2.54+7/1.91 Aluminum Conductor Steel Reinforced
| Code name | Coyote | ||
|---|---|---|---|
| Nominal aluminum area mm 2 | 125 | ||
| Stranding structure | Al. No. | 26 | |
| Al. Dia. | 2.54 | ||
| St. No. | 7 | ||
| St. Dia | 1.91 | ||
| Sectional area of aluminum | mm 2 | 132.1 | |
| Total sectional area | mm 2 | 152.2 | |
| Overall diameter | mm | 15.89 | |
| Total | kg/km | 522 | |
| Calculated breaking load | daN | 4640 | |
| Calculate D.C resistance at 20 ℃ | Ω/km | 0.2187 | |
| Current Rating | A | 311 | |
The above is some information about acsr coyote bare conductor specification. We can find this overhead bare conductor construction is very simple. However, this acsr coyote is very popular in power, transportation, telecom engineering and electrical engineering and other fields. In fact, we have exported our coyote conductor (26/2.54+7/1.91) to many countries. So, if you need acsr coyote conductor quotation for England, France, Croatia, America, Canada, Australia, Nigeria, South Africa, Mozambique, Togo, Yemen, Malaysia, Indonesia, Philippines, Thailand, Vietnam, just send your inquiry. Email: sales@hdcoverheadconductor.com
What do you need to pay attention to during acsr 26/7 conductor application?
As we all know, each thing has the service life, and the 26/7 aluminum conductor steel reinforced also is. But in the acsr coyote conductor application, there are many things may damage this wire. In order to protect acsr 26*2.54+7*1.91 coyote bare wire, you should notice something. First of all, you should install the conductor according to the standard. Because improper operation may cause some damages for the coyote acsr conductor and other similar bare acsr conductors. In the installation, some collision may be very normal, but we should prove not to cause serious injury. What’s more, if you have any question, you can contact the coyote conductor suppliers. They can give you some tips. Email: sales@hdcoverheadconductor.com
What’s more, in the normal using, the regular test for acsr conductor cable is very important. Once having problems, you can adopt some measures in time. Especially, the acsr coyote (26*2.54+7*1.91) shouldn’t overload. Because summer is very hot, you need to notice the acsr 26/7 conductor heat problem. Actually, you’d try your best to buy high quality coyote conductor from professional suppliers. It will be much safer.
The best place to purchase acsr coyote conductor

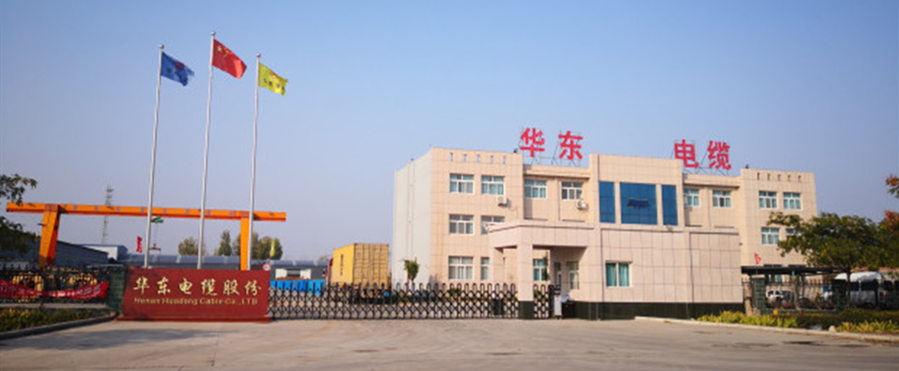

Huadong Cable Group is one of the biggest professional acsr coyote conductor manufacturers. We owns our factory, which has advanced equipment and skilled workers. In addtion to acsr coyote wire, we also have cheap 795mcm acsr conductor for sale. Just leave the acsr conductor sizes you need. What’s more, we can deliver our 26*2.54+7*1.91 acsr conductor on time. If you are interested in our coyote conductor cost per meter, please contact us.
