ACSR 477 belongs to ACSR-ASTM-B232. In the 477 mcm acsr contains three kinds of aluminum conductor steel reinforced. They are: 477 mcm Pelican, 477 mcm Hawk and 477 mcm hen acsr. They have the same aluminum are. It is 241.68 mm2. But the other specification is totally different. You can look at the 477 acsr conductor size and choose the suitable type. As a professional 477 mcm hawk aluminum conductor steel reinforced manufacturer, we can give you best price. Email: sales@hdcoverheadconductor.com.
477 ACSR – Aluminum Conductor Steel Reinforced Specification
| Code name | Pelican | Flicker | Hawk | Hen | ||
|---|---|---|---|---|---|---|
| Area | Aluminum | AWG or MCM | 477 | 477 | 477 | 477 |
| mm 2 | 241.68 | 241.68 | 241.68 | 241.68 | ||
| Steel | mm 2 | 13.42 | 31.29 | 39.42 | 56.39 | |
| Total | mm 2 | 255.1 | 272.97 | 281.1 | 298.07 | |
| Stranding and diameter | Aluminum | mm | 18/4.12 | 24/3.58 | 26/3.44 | 30/3.20 |
| Steel | mm | 1/4.14 | 7/2.39 | 7/2.67 | 7/3.20 | |
| Approximate overall diameter | mm | 20.7 | 21.49 | 21.79 | 22.4 | |
| Linear mass | Aluminum | kg/km | 666 | 670 | 670 | 671 |
| Steel | kg/km | 105 | 245 | 308 | 441 | |
| Total. | kg/km | 771 | 915 | 978 | 1112 | |
| Rated tensile strength | daN | 5216 | 7666 | 8665 | 10534 | |
| Maximum D.C. Resistance at 20 ℃ Ω/km | 0.1193 | 0.1199 | 0.1199 | 0.1201 | ||
| Cuttent Rating | A | 449 | 454 | 455 | 457 |
Get the free sample: Email: sales@hdcoverheadconductor.com.
477 acsr pelican strands 18 aluminum. Each diameter is 4.12 mm. And strands 1 steel, and the diameter is 4.14 mm. You can find the 477 mcm pelican 18/1 acsr conductor supplier for specification and price. About the 477 acsr hawk, it mainly strands 26 aluminum, and the diameter is 3.44 mm. Each diameter of 7 steels is 3.44 mm. In fact, the demand for 477 mcm hawk 26/7 aluminum conductor steel reinforced is great. If you also need to purchase 477 acsr bare conductor, just contact us. What’s more, 477 hen acsr strands the most aluminum, which is 30 aluminum. Each diameter is 3.20 mm. and strands 7 steels with the same diameter. Some parameters of 477 acsr pelican, hawk, hen are very close. So, if you want to know more about 18/1, 26/7 and 30/7 477 mcm acsr conductor price, just leave your message. Email: sales@hdcoverheadconductor.com.
What’s the application of 477 mcm hawk 26/7 acsr conductor?

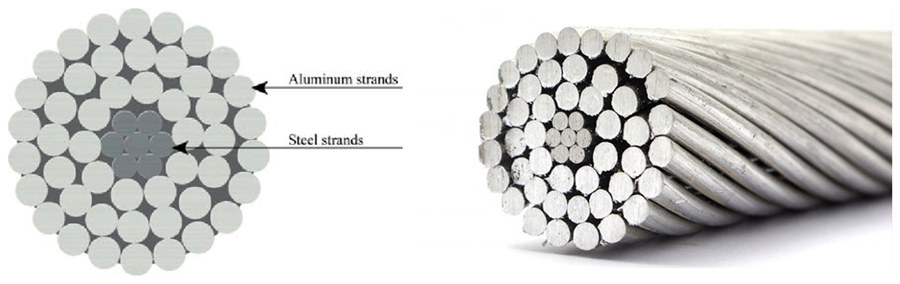

As one type of bare conductor, 477 mcm hawk 26/7 acsr conductor has a simple structure. The aluminum mainly transport the power, and the steel mainly increase the strength. Compare with other mental, the strength of aluminum is a little weak. So the steel can increase the strength of products. The 477 mcm acsr hawk conductor owns the good transport and high strength. In addition, we can supply similar conductor, like 795 mcm acsr conductor, 1272mcm acsr wire and so on. What’s more, these cable used widely in the place in the extra-spans. However, if you are going to buy 477 mcm hawk 26/7 aluminum conductor steel reinforced cable, you need to select reliable supplier. Email: sales@hdcoverheadconductor.com.
Huadong Cable Group is one of the biggest professional acsr conductor manufacturers. In addition, our acsr panther conductor has exported to many countries. We owns our acsr 477 mcm hawk conductor factory, which has advanced equipment and excellent engineer. So we can not only deliver product on time, but also promise the cheap price of 477 mcm 26/7 acsr hawk conductor. If you compare the acsr 1272 mcm cable price in different countries, you can find our company has a great advantage. We have supply cheap hawk 477 acsr conductor for England, France, Croatia, America, Canada, Australia, Nigeria, South Africa, Mozambique, Togo, Yemen, Malaysia, Indonesia, Philippines, Thailand, Vietnam and other countries. So, just contact us to get 477mcm acsr 26/7 hawk conductor quotation. Email: sales@hdcoverheadconductor.com.
